How to Use Webhooks with WhatsApp

Connecting your app to WhatsApp goes beyond sending message payloads. A reliable integration must respond to incoming customer messages, process interactive quick-replies, and log delivery statuses in real-time. Webhooks make this event-driven flow possible by pushing updates directly to your servers.

Setting up your webhook endpoint requires configuring a public HTTPS listener, implementing a GET verification handshake, parsing POST payloads, and validating message authenticity. Without these elements, your system may experience timeouts, duplicate message calls, or security vulnerabilities.

This step-by-step guide explains how to build a webhook listener, test it locally, deploy it to production, and secure it against unauthorized requests.

A webhook is a user-defined HTTP callback. When an event occurs—such as a user sending an image, a message status changing to "read", or a delivery failing—the API provider sends an HTTP POST request containing a JSON payload to your registered listener URL.

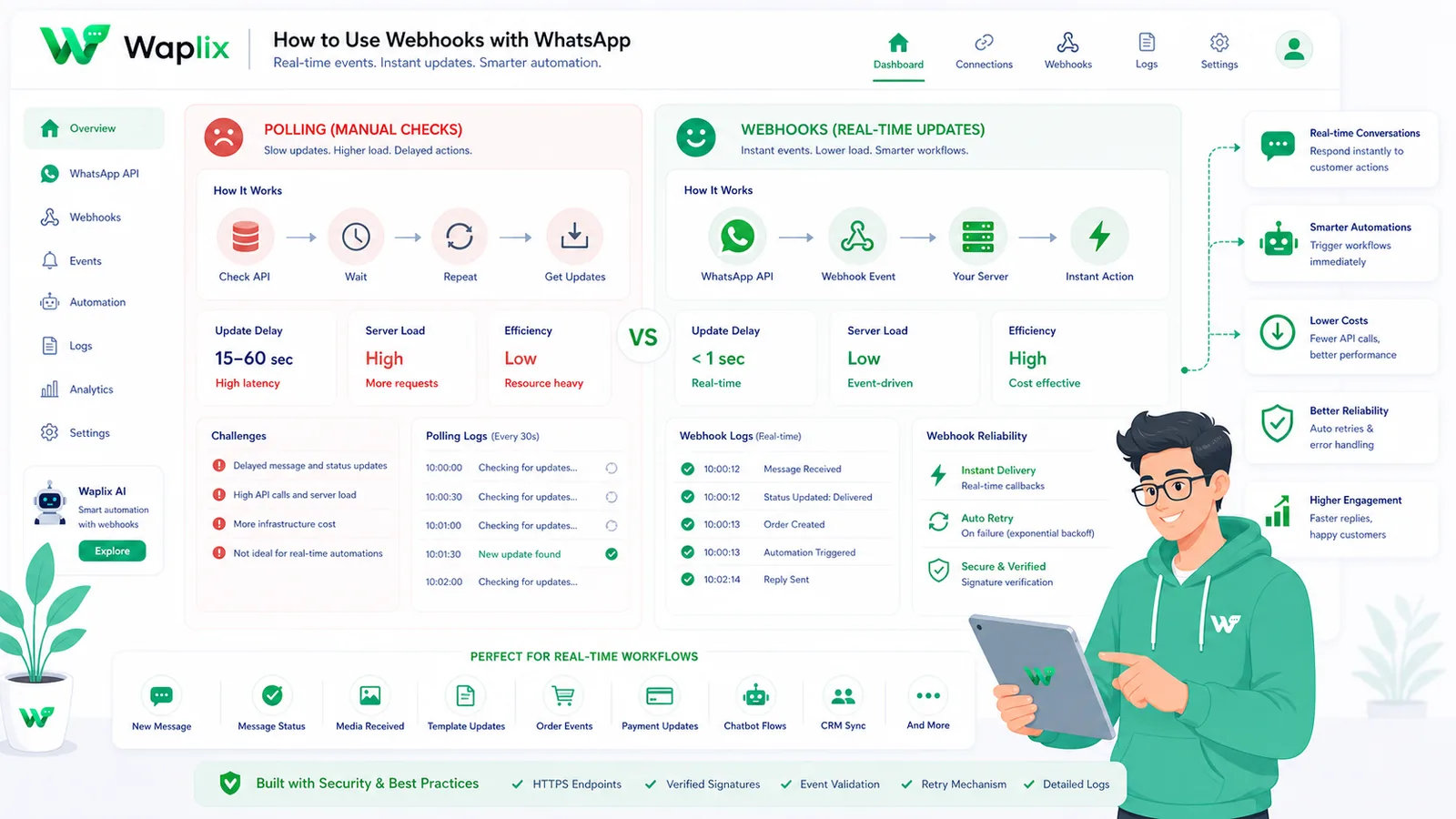

This pattern shifts your app architecture from a polling model to a push model, conserving resources and ensuring near-zero latency for incoming responses.

By connecting systems, you can trigger specific messages based on customer behavior—such as confirming a booking, following up on a delivery, or recovering an abandoned shopping cart.

Your webhook listener must inspect the event header to parse and route payloads to the correct handlers.

1. Inbound messages (`messages.receive`)

Fires when a customer sends a text, image, document, location, or contact card. Your application uses this event to capture input, trigger AI responses, or route chats to agent queues.

2. Message status updates (`messages.status`)

Tracks the lifecycle of outbound messages. Events update status values from `sent` to `delivered`, `read`, or `failed` in real-time, providing visibility into customer engagement.

3. Template quality changes

Meta monitors template rejection and block rates. Webhook alerts notify your team if a template's quality rating drops, helping you adjust content before blocks occur.

4. Account billing events

Alerts notify you when your conversation quota limits are reached or card transactions fail, helping you maintain service continuity.

Configuring a webhook listener requires setting up validation, parsing payloads, and handling retries. Follow this implementation guide.

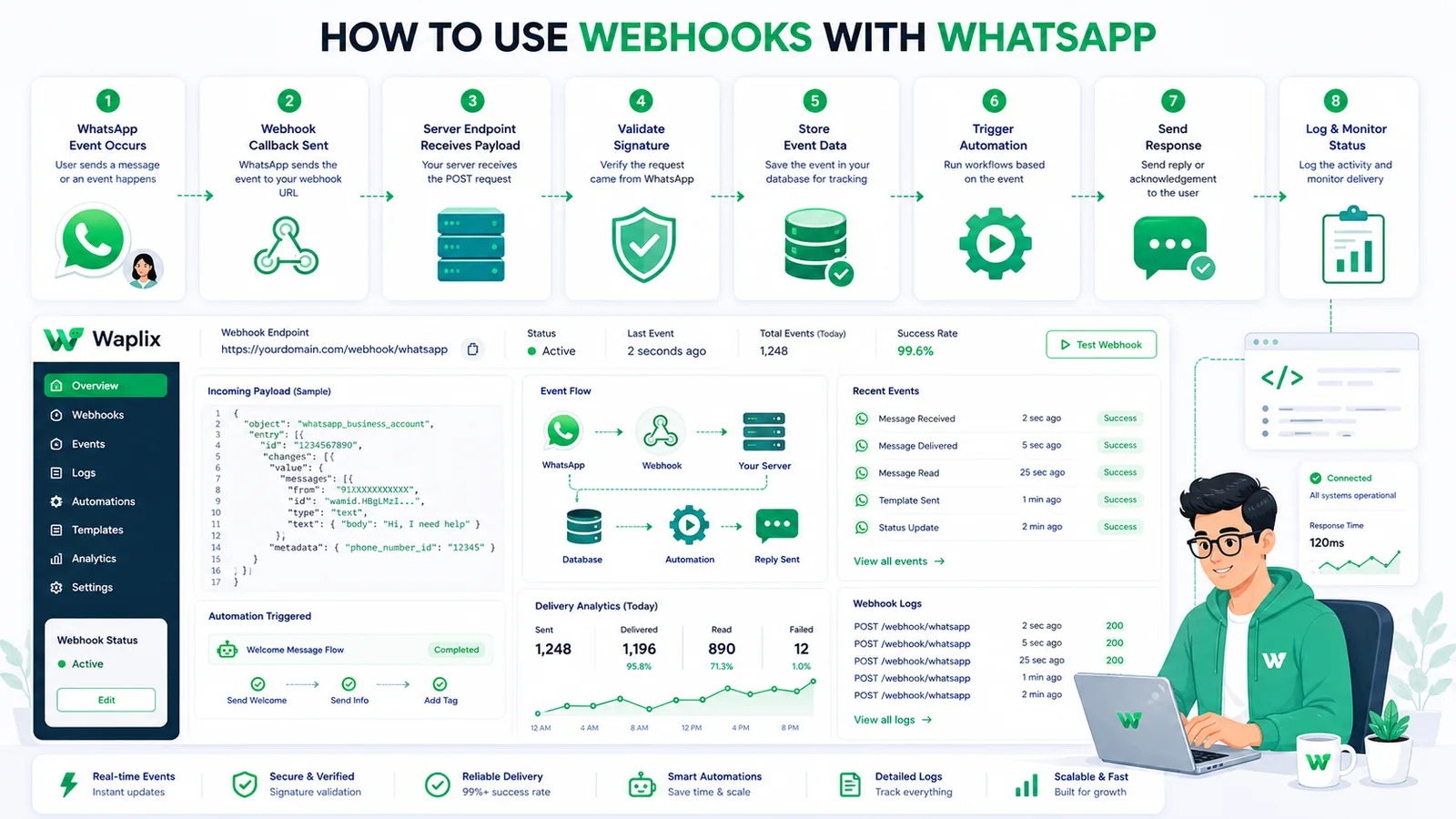

A robust listener separates webhook ingestion from payload processing. This diagram outlines the workflow from event trigger to application database updates.

Events trigger callbacks from Meta. The listener validates the header signatures, queues the payload in Redis, and returns an immediate response. Background workers then process the data, handle database updates, and update CRM records.

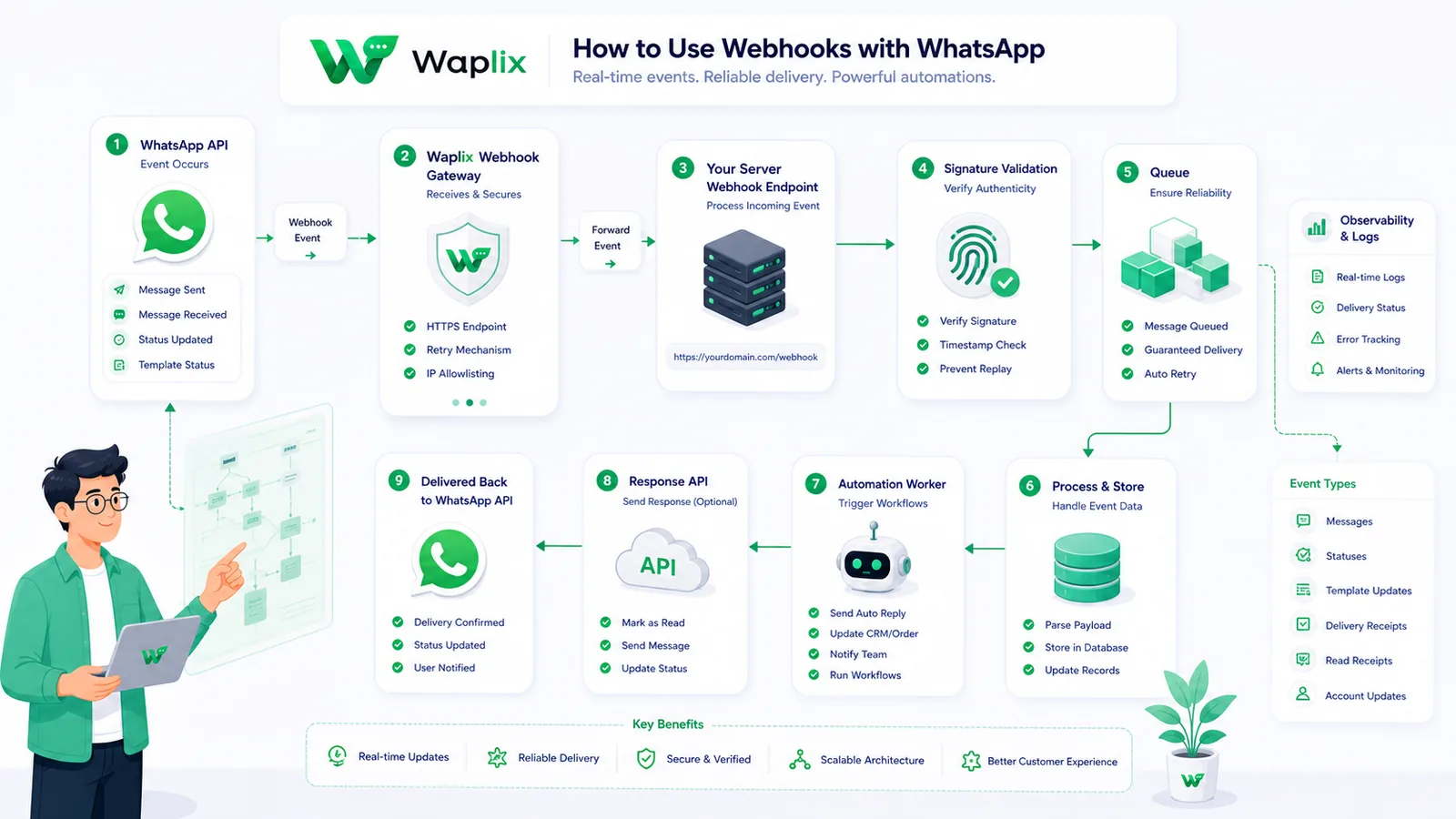

Real-time updates require clean sync between Meta servers, the Waplix gateway, and your backend databases.

When an event occurs, Meta triggers the Waplix backend. Waplix processes the payload, maps fields to standard structures, signs the headers, and sends the payload to your registered listener URL.

These examples show how to configure webhook validation and parse incoming JSON payloads using common backend frameworks.

1. Node.js Express setup

Write an Express route that validates the handshake GET request and processes POST payloads.

const express = require('express');
const crypto = require('crypto');
const app = express();

app.use(express.json());

const WEBHOOK_SECRET = process.env.WAPLIX_WEBHOOK_SECRET;

// 1. GET Handshake Verification (Runs once during setup)
app.get('/webhooks/whatsapp', (req, res) => {
  const mode = req.query['hub.mode'];
  const token = req.query['hub.verify_token'];
  const challenge = req.query['hub.challenge'];

  if (mode === 'subscribe' && token === 'my_verify_token_123') {
    return res.status(200).send(challenge);
  }
  return res.sendStatus(403);
});

// 2. POST Event Handler (Fires for incoming messages/updates)
app.post('/webhooks/whatsapp', (req, res) => {
  // Validate signature header
  const signature = req.headers['x-waplix-signature'];
  const hmac = crypto.createHmac('sha256', WEBHOOK_SECRET);
  const digest = hmac.update(JSON.stringify(req.body)).digest('hex');

  if (signature !== digest) {
    return res.sendStatus(401); // Unauthorized payload
  }

  // Acknowledge receipt immediately to avoid timeouts
  res.sendStatus(200);

  // Hand off payload to background queue
  processPayloadAsync(req.body);
});

2. Python Flask setup

A similar setup using Python Flask to process incoming message payloads.

import hmac
import hashlib
import os
from flask import Flask, request, jsonify

app = Flask(__name__)

WEBHOOK_SECRET = os.environ.get("WAPLIX_WEBHOOK_SECRET")

@app.route("/webhooks/whatsapp", methods=["GET"])
def verify_webhook():
    mode = request.args.get("hub.mode")
    token = request.args.get("hub.verify_token")
    challenge = request.args.get("hub.challenge")

    if mode == "subscribe" and token == "my_verify_token_123":
        return challenge, 200
    return "Forbidden", 403

@app.route("/webhooks/whatsapp", methods=["POST"])
def handle_webhook():
    signature = request.headers.get("X-Waplix-Signature")
    payload = request.data

    # Verify signature signature
    expected_sig = hmac.new(WEBHOOK_SECRET.encode(), payload, hashlib.sha256).hexdigest()
    if signature != expected_sig:
        return "Unauthorized", 401

    # Return 200 OK immediately
    return "OK", 200

For more detailed code samples, visit the API documentation and review our webhook documentation.

Operating a customer support desk on WhatsApp requires strict adherence to Meta's messaging policies and local data privacy laws.

• Opt-in verification. Businesses must secure explicit consent before sending outbound transactional alerts or ticket updates to customers.
• The 24-hour service window. Free-form messages can be sent within a 24-hour service window opened by a user's message. Messages sent outside this window must use pre-approved templates.
• Opt-out controls. Include clear opt-out options (such as quick-reply buttons like "STOP") in your templates to make unsubscribing easy and protect your quality rating.
• Follow local privacy laws. Ensure compliance with GDPR, TCPA, and other relevant regional regulations.

Meta's raw webhook architecture requires managing complex JSON arrays, parsing nested user profile objects, and handling signature verifications. Waplix parses Meta's payload structures and sends clear, simplified JSON events directly to your server.

• Synchronous processing. Running heavy backend tasks (e.g. database updates) inside the webhook thread leads to timeout failures.
• Skipping signature checks. Neglecting validation allows unauthorized parties to send fake payloads to your endpoint.
• Incorrect HTTP status codes. Returning 500 errors or non-200 responses for successfully parsed payloads triggers retry loops.
• Neglecting idempotency. Not tracking message IDs can lead to duplicate entries if Meta retries delivery.
• Ignoring failure webhooks. Not logging message delivery failures (like invalid numbers) makes tracking logs inaccurate.

Webhooks are essential for building responsive, real-time messaging applications on WhatsApp. Designing secure, asynchronous listeners ensures your system handles traffic spikes reliably while keeping databases synchronized.

Expose a public HTTPS URL, implement signature checks, queue incoming payloads, and test your setup using local tunnels to build a secure integration foundation.
